A Bloom Filter is a probabilistic data structure used to test whether an element is a member of a set. It is designed to be very fast and extremely space-efficient, especially when working with large volumes of data where memory is constrained.

However, it comes with one trade-off:

• It may produce false positives (saying an element is in the set when it actually isn’t).
• But it never produces false negatives (if it says an element is not present, it’s guaranteed to be absent).

In this chapter, we will explore the low-level design of bloom filter in detail.

Lets start by clarifying the requirements:

1. Clarifying Requirements

Before starting the design, it's important to ask thoughtful questions to uncover hidden assumptions, clarify ambiguities, and define the system's scope more precisely.

Here is an example of how a discussion between the candidate and the interviewer might unfold:

Based on the discussion, here’s a summary of the functional requirements:

1.1 Functional Requirements

1. Support add(element): Add an element to the set.
2. Support mightContain(element): Check if an element might be in the set.
3. The filter should operate on strings as the input data type.
4. Support configurable values of k (number of hash functions) and m (size of the bit array).

1.2 Non-Functional Requirements

1. Space Efficiency: The Bloom Filter should use significantly less memory than storing the actual elements
2. High Performance: Both add and mightContain operations should be optimized for speed, ideally executing in O(1) time.
3. Thread-Safety: The implementation should be safe to use in a concurrent environment.

2. Identifying Core Entities

The design of a Bloom Filter is fundamentally different from typical object-oriented systems that model real-world entities. Instead of focusing on domain objects, we focus on choosing the right low-level data structures and abstractions that enable fast, memory-efficient, and thread-safe operations.

Our goal is to support two operations add(element) and mightContain(element) both in O(1) time, using minimal memory, while being safe for use in multi-threaded environments.

To meet these requirements, we must combine three key components:

1. A bit array to track element presence
2. A set of hash functions to map inputs to bit positions
3. A main coordinating class that exposes the public API and manages the internal logic

Let’s break down these components and understand how they interact.

1. Bit Array (Data Store)

The first and most fundamental requirement is space efficiency. Since we are explicitly told not to store the actual elements, we need a compact representation of which elements have been seen.

This leads us to a bit array — a one-dimensional array where each element is a single bit (0 or 1).

• Initially, all bits are set to 0.
• When an element is added, multiple hash functions map it to k bit positions, and each of those bits is set to 1.
• When checking for presence, the same k bits are examined. If all are 1, the element might be in the set. If any bit is 0, it is definitely not.

In Java, we would typically use java.util.BitSet for this purpose, as it provides a compact, memory-efficient implementation and utilities for bit manipulation.

2. Hash Functions

To populate and check the bit array, we need a way to map each element to one or more bit positions. This is the role of our hash functions.

A standard Bloom Filter uses k independent hash functions, each of which maps a string input to a bit array index between 0 and m - 1.

• The same set of hash functions must be used in both add() and mightContain() operations.
• Multiple hash functions reduce the chance of collisions and help maintain a low false positive rate.

In our Bloom Filter, we will maintain an array or list of k HashFunction implementations, each producing a different hash value for the same input.

3. BloomFilter

Finally, we need a public-facing class that ties everything together and exposes a clean API to the user. This is the BloomFilter class.

It acts as the coordinator or facade, hiding the internal complexity of hashing and bit manipulation while providing two easy-to-use methods:

• add(String element)
• mightContain(String element): boolean

Together, these core components allow us to build a Bloom Filter that is compact, and fast, all while delivering the required functionality and performance.

3. Designing Classes and Relationships

Now that we've identified the core components of a Bloom Filter, it's time to convert those ideas into a structured class design. This includes defining the responsibilities and attributes of each class, establishing relationships between them, applying design patterns for clean extensibility, and finally visualizing the system in a class diagram.

3.1 Class Definitions

We begin by defining the key classes involved in the system, starting with data structures and utilities, and culminating in the main interface.

Enums

BloomFilter

This is the main class that exposes the public API (add and mightContain) and orchestrates the behavior of the internal components.

Attributes:

• bitArray: BitSet – The core data store that tracks presence via bits.
• hashFunctions: List<HashFunction> – A list of k independent hash functions.
• size: int – The total size m of the bit array.

Methods:

• BloomFilter(int size, List<HashFunction> hashFunctions) – Constructor to initialize size and hash functions.
• void add(String element) – Applies all hash functions to the input and sets the corresponding bits.
• boolean mightContain(String element) – Applies all hash functions and checks if all relevant bits are set.

HashFunction (Interface)

Defines the contract for hash functions used by the Bloom Filter.

Method:

• int hash(String input, int seed, int bound) – Computes a hash of the input string, using a seed, and returns a result in the range [0, bound).

This allows support for multiple independent hash functions by using different seeds.

3.2 Class Relationships

Understanding how these classes interact clarifies system behavior and responsibilities.

Composition

• BloomFilter has-a BitSet
• BloomFilter has-a List<HashFunction>

The BloomFilter owns and manages these components. Their lifecycle is tied to the lifecycle of the filter.

Association

• BloomFilter uses HashFunction to compute bit positions.
• HashFunction is an abstraction that allows the filter to be configured with different implementations.

3.3 Key Design Patterns

We apply a few classic design principles and patterns to keep the system modular, flexible, and testable.

Strategy Pattern

The HashFunction interface and its implementations follow the Strategy Pattern. This allows us to inject different hashing strategies into the filter at runtime, based on the use case or performance characteristics.

• Example: We can replace DefaultHashFunction with MurmurHashFunction , Djb2Hashwithout changing the BloomFilter class.

Factory Pattern

Creating a Bloom Filter requires complex calculations to determine the optimal bit array size (m) and number of hash functions (k) based on user-friendly inputs (expected elements and desired false positive rate). We provide a public static factory method BloomFilter.create(...) that encapsulates this complexity, offering a much cleaner API to the client than a constructor that requires m and k directly.

Builder Pattern

Facade Pattern (Implicit)

The BloomFilter class acts as a facade, exposing a simplified interface (add and mightContain) while hiding all internal details related to hashing, bit manipulation, and concurrency handling.

This simplifies the usage for clients and makes the internal system easier to evolve without breaking external code.

3.4 Full Class Diagram

4. Implementation

4.1 HashType Enum

Defines the set of supported hash function types. This allows runtime flexibility in choosing hash algorithms and enables extensibility by adding new types later.

4.2 HashStrategy Interface and Implementations

Defines a contract for all hashing algorithms used in the Bloom Filter. Any strategy must implement a consistent way to hash strings into long integers.

• FNV1aHashStrategy: Implements the FNV-1a (64-bit) hashing algorithm. It's fast, simple, and has good dispersion for small strings.
• DJB2HashStrategy: Implements the DJB2 hash function, known for simplicity and relatively low collision rate.

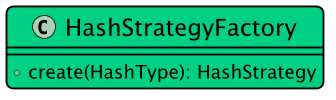

4.3 HashStrategyFactory

Implements the Factory Pattern to provide the appropriate hashing strategy based on the enum value. Decouples strategy instantiation from client code.

4.4 BloomFilter Class

This is the core Bloom Filter class.

• bitSet: The binary array (bitmap) representing membership.
• numHashFunctions: Controls how many different hashes are computed for each item.
• hashStrategies: A list of HashStrategy instances used to simulate multiple independent hash functions.

add(String item)

Inserts an element into the Bloom filter by setting k bits in the bit array. Each hash function produces a position; that bit is set to 1.

mightContain(String item)

Checks for probable presence by verifying all bits that would have been set for the element.If any bit is not set, the element is definitely not present (no false negatives). If all bits are set, the item might be present (possible false positives).

Builder Pattern

Constructing a BloomFilter requires several parameters that must be set correctly. The Builder pattern provides a fluent, readable API for this configuration. It also allows us to perform validation within the build() method, ensuring that no BloomFilter object is ever created in an invalid state.

4.6 Example Usage: BloomFilterDemo

The BloomFilterDemo class demonstrates how a client would use the system, highlighting its core properties: the guarantee of no false negatives and the probability of false positives.

This driver code demonstrates a complete workflow:

1. Configuration: The filter is configured and built using the fluent Builder API.
2. Population: A set of known elements is added to the filter.
3. Verification: The demo programmatically verifies the Bloom Filter's primary guarantee: that it will never return false for an element that has been added (no false negatives).
4. Demonstration of Trade-off: It then tests a large number of random elements that were never added to show that a small percentage are incorrectly identified as being present (false positives). This clearly illustrates the space-vs-accuracy trade-off inherent in a Bloom Filter.

5. Run and Test
