Design Stack Overflow

Ashish

Ashish Pratap Singh

medium

Stack Overflow is one of the most widely used question-and-answer platforms for software developers. It enables users to ask technical programming questions, receive answers from the community, and collaboratively improve the quality of information through voting and editing.

Although its popularity has declined since the rise of AI tools like ChatGPT, Stack Overflow remains a valuable resource especially for well-structured, peer-reviewed solutions and niche programming discussions.

Stack Overflow

Stack Overflow is used daily by:

  • Beginners looking to troubleshoot basic issues
  • Experienced engineers seeking deeper insights
  • Experts sharing best practices and advanced techniques

In this chapter, we will explore the low-level design of stack overflow like system in detail.

Let's start by clarifying the requirements:

1. Clarifying Requirements

Before starting the design, it is important to ask thoughtful questions to uncover hidden assumptions and better define the scope of the system.

Here is an example of how a discussion between the candidate and the interviewer might unfold:

After gathering the details, we can summarize the key system requirements.

1.1 Functional Requirements

  • Users can post questions, answers, and comments on both questions and answers
  • Users can upvote or downvote questions and answers. A user can only vote once per post.
  • The original poster of a question can accept one answer as the solution.
  • Question can have one or more tags
  • Users earn or lose reputation points based on upvotes/downvotes on their content and whether their answer is accepted
  • Support searching for questions by keywords in the title or body and filtering questions by tags

1.2 Non-Functional Requirements

  • Consistency: Voting actions and reputation updates should be strongly consistent and reflected immediately.
  • Concurrency: The system must gracefully handle high-concurrency scenarios, such as multiple users voting on the same post simultaneously.
  • Scalability: The design should be scalable to accommodate a growing number of users, questions, and answers.

2. Identifying Core Entities

Core entities are the fundamental building blocks of our system. We identify them by analyzing the functional requirements and highlighting the key nouns and responsibilities that naturally map to object-oriented abstractions such as classes, enums, or interfaces.

Let’s walk through the functional requirements and extract the relevant entities:

1. Users can post questions, answers, and comments.

This clearly suggests the need for a User entity to represent participants of the system, along with Question, Answer, and Comment entities. Each of these entities will hold content, metadata (like creation time), and relationships (such as author and parent post).

2. Comments can be added to both questions and answers.

This implies that Comment should be a standalone entity with a reference to its parent post (which could be a Question or an Answer). Since we’re only supporting flat comments, we don’t need to model nested replies.

3. Users can upvote or downvote questions and answers, and voting affects reputation.

We need a Vote entity to track who voted on what and in what direction (up or down). The User entity should maintain a Reputation field that is updated based on voting outcomes and accepted answers.

4. A question can have multiple tags and one accepted answer.

We need a Tag entity, and the Question entity should maintain a list of tags and a reference to the accepted Answer.

5. The system should support search and filtering.

To support searching by keyword and filtering by tag, Question should expose fields like title, body, and tags in a searchable format. While we may use indexing or search service integrations in real implementation, at the design level this implies the need for search-related APIs and utility methods.

These core entities define the key abstractions of the stack overflow system and will guide the structure of our low-level design and class diagrams.

3. Designing Classes and Relationships

This section outlines the classes that form the core of the Stack Overflow system, their responsibilities, the relationships between them, and the key design patterns employed.

3.1 Class Definitions

The system is broken down into several types of classes, each with a distinct role.

Enums

Simple enumerations that define a fixed set of constants.

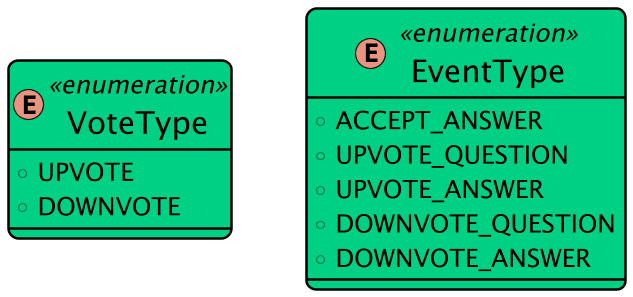

Enums
  • VoteType: Represents the two types of votes a user can cast: UPVOTE and DOWNVOTE.
  • EventType: Defines all actions that can trigger a reputation change, such as UPVOTE_QUESTION, DOWNVOTE_ANSWER, and ACCEPT_ANSWER.

Data Classes

These classes primarily act as data containers with minimal logic.

User

Represents a platform user with a unique ID, name, and a thread-safe reputation score.

User

Tag

A simple class representing a topic tag (e.g., "java") that can be associated with questions.

Tag

Event

A data-transfer object used in the Observer pattern. It encapsulates the details of an action, including its EventType, the actor (user) who performed it, and the targetPost.

Core Classes

These classes contain the main business logic and structure of the application.

Content (Abstract)

The base class for all user-generated content.

It holds common attributes like an id, body, author, and creationTime.

  • Post (Abstract): Extends Content. It's the foundation for content that can be voted on, like questions and answers. It manages vote counts, tracks voters to prevent duplicates, holds a list of comments, and implements the "Subject" part of the Observer pattern.
  • Question: A subclass of Post that represents a user's question. It includes a title, a set of Tags, a list of Answers, and can have one acceptedAnswer.
  • Answer: A subclass of Post that represents a reply to a Question. It has a flag to indicate if it's the accepted answer.
  • Comment: A simple subclass of Content. It represents a comment on a Post and doesn't have voting or reputation features.

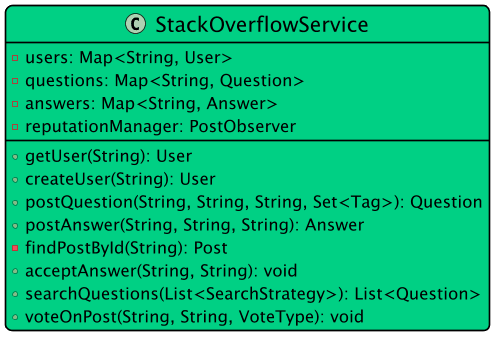

StackOverflowService

Acts as the central Facade for the entire system.

StackOverflowService

It provides a simple, unified API for clients to perform all major actions (e.g., creating users, posting questions, voting, searching) and orchestrates the interactions between the other components.

3.2 Class Relationships

The classes interact through a combination of inheritance, composition, and association.

Inheritance (Is-A)

Used to create a hierarchy for content types.

  • Post and Comment inherit from Content.
  • Question and Answer inherit from Post. This creates a clear "is-a" relationship (e.g., a Question is a type of Post).

Implementation (Implements-A)

Used to enforce contracts defined by interfaces.

  • ReputationManager implements the PostObserver interface, promising to handle post events.
  • KeywordSearchStrategy, TagSearchStrategy, and UserSearchStrategy all implement the SearchStrategy interface, providing different ways to filter questions.

Composition (Owns-A)

Represents a strong "whole-part" relationship where one object owns another and manages its lifecycle.

  • StackOverflowService owns the collections of Users, Questions, and Answers. These objects are created and managed through the service.
  • A Question owns its list of Answers.
  • A Post owns its list of Comments.

Aggregation (Has-A)

A weaker "has-a" relationship where an object is associated with another independent object.

  • A Content object (like a Question or Answer) has an author (User). The User exists independently of the content they create.
  • A Question has a set of Tags. The tags can exist independently of any single question.

Association (Uses-A)

Represents a relationship where one object uses another to perform an action, without ownership.

  • A Post is associated with a list of PostObservers. It calls their onPostEvent method but doesn't own them.
  • The StackOverflowService uses SearchStrategy objects (passed as arguments) to perform searches.
  • An Event is associated with a User (the actor) and a Post (the target), linking them together for a specific action.

3.3 Key Design Patterns

The design leverages several standard design patterns to create a modular, flexible, and maintainable system.

Observer Pattern

This pattern is used to decouple actions from their consequences, such as updating reputation after a vote.

  • Subject: The Post class. It maintains a list of observers and notifies them when an event (like a vote) occurs via its notifyObservers method.
  • Observer: The PostObserver interface.
  • Concrete Observer: The ReputationManager class. It registers with posts and updates user reputations whenever it receives an event notification.
  • Benefit: If we want to add new functionality, like awarding badges for upvotes, we can simply create a new BadgeManager class that implements PostObserver without changing any of the existing Post or ReputationManager code.

Strategy Pattern

This pattern is used to define a family of algorithms (search strategies), encapsulate each one, and make them interchangeable.

  • Context: The StackOverflowService. Its searchQuestions method accepts a list of strategies.
  • Strategy: The SearchStrategy interface, which defines the common filter operation.
  • Concrete Strategies: KeywordSearchStrategy, TagSearchStrategy, and UserSearchStrategy. Each encapsulates a specific filtering algorithm.
  • Benefit: The client can compose complex search queries by combining different strategy objects. New search methods can be added easily by creating new classes that implement the SearchStrategy interface.

Facade Pattern

The StackOverflowService class acts as a Facade.

  • Facade: StackOverflowService.
  • Subsystem: The network of classes including User, Question, ReputationManager, etc.
  • Benefit: It provides a simple, unified interface to a complex subsystem. A client (like the StackOverflowDemo class) interacts only with the StackOverflowService to perform high-level operations, hiding the internal complexity of object creation, observer registration, and data management.

3.4 Full Class Diagram

4. Implementation

4.1 VoteType Enum

Represents the two possible types of votes users can cast on a question or answer.

4.2 EventType Enum

Enumerates all the actions that can impact reputation. Used in the Observer pattern for event handling.

4.3 User

Represents a user on the platform.

Maintains a thread-safe reputation that changes in response to community activity.

4.4 Content (Abstract Class)

Base class for Post and Comment. Encapsulates common attributes such as content body, author, and creation timestamp.

4.5 Post

Post tracks votes and prevents duplicate voting.

Implements the Observer pattern to notify attached systems (like ReputationManager) of vote events.

4.6 Tag

Represents a category or topic label associated with a question, used for searching and filtering.

4.7 Question

Extends Post with additional attributes:

  • title: headline of the question
  • tags: topical categorization
  • acceptedAnswer: tracks the answer accepted by the question author

4.8 Answer

Represents a response to a question. An answer can be marked as “accepted” by the question author.

4.9 Comment

Comments are simple annotations on a post or answer with no voting or reputation impact.

4.10 Event

Represents an action taken on a post (e.g., vote or accept) and who performed it. Used to trigger side effects like updating reputation.

4.11 PostObserver (Observer Pattern)

The Observer pattern is used to decouple the action (e.g., a vote) from its consequences (e.g., reputation change). This makes the system modular and easy to extend with new consequences like badges or notifications.

4.12 ReputationManager

Handles reputation updates for users based on post activity. Implements PostObserver to listen to events from Post.

4.13 SearchStrategy and Implementations

The Strategy pattern allows us to define a family of search algorithms, encapsulate each one, and make them interchangeable.

Each strategy (KeywordSearchStrategy, TagSearchStrategy) encapsulates a single filtering algorithm. The main StackOverflowService can accept a list of these strategies and apply them sequentially.

4.14 StackOverflowService (Facade)

This class acts as a central Facade and orchestrator for the entire system, providing a simple, unified API for clients.

  • Central Coordinator: This service is the single point of entry for all high-level operations. It hides the complexity of object creation, observer registration, and data storage.
  • Observer Registration: A key responsibility of the service is to ensure that when a new Post is created, the necessary observers (like reputationManager) are attached to it. This connects the "Subject" to its "Observers".

4.15 StackOverflowDemo

This driver class demonstrates the end-to-end functionality, showing how a client would use the service to simulate interactions on the platform.
