In the last chapter, we explored Association, the fundamental "uses-a" relationship that connects independent objects. We learned that in an association, objects have their own lifecycles.

But what happens when the relationship is a bit tighter? What if one class represents a "whole" and another represents a "part" of that whole?

Think of a university department and its professors, a team and its players, or a playlist and its songs.

This is where Aggregation comes in. It’s a specialized, stronger form of association that models a "whole-part" relationship.

1. What is Aggregation?

Aggregation is a specialized form of association that models a whole-part relationship with loose ownership. One class (the "whole") contains references to other class objects (the "parts"), but the parts can exist independently of the whole.

It's often described as a "has-a" relationship where the whole does not control the part's lifecycle. The key distinction from plain association is the structural hierarchy: there's a clear container and contained, not just two objects that know about each other.

Key Characteristics of Aggregation:

The whole and the part are logically connected through a container-contained hierarchy.
The part can exist independently of the whole.
The whole does not create or destroy the part.
The part can be shared among multiple wholes.
Both the whole and the part can be created and destroyed independently.

If a class contains other classes for logical grouping only without lifecycle ownership, it is an aggregation.

Real-World Analogy

Let’s consider a university context:

A Department has many Professors.
Professors may belong to a department, but they are not owned by it.
If a department is dissolved, the professors still continue to exist, possibly getting reassigned to other departments.
A professor can even belong to multiple departments in some universities.

This relationship models Aggregation:the department and professors are linked, but their lifecycles are not tightly coupled.

2. UML Representation

In UML class diagrams, aggregation is represented by a hollow diamond (◊) on the "whole" side of the relationship. The diamond connects to the class that contains or references the other objects.

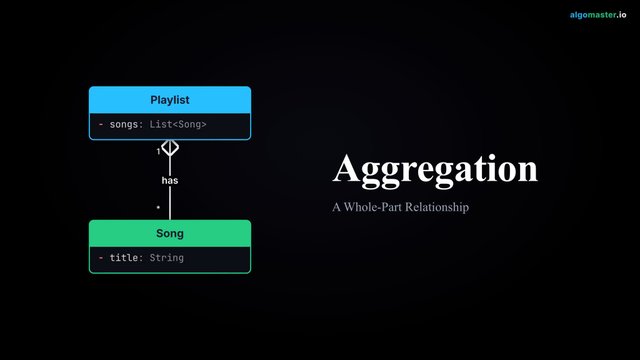

The diagram shows two classes connected by aggregation:

Playlist holds references to multiple Song objects. The 1 to * multiplicity means one playlist can group many songs.
Song is an independent entity with its own data (title, artist, duration). It doesn't know which playlists reference it.
The hollow diamond (o--) on the Playlist side is the UML notation for aggregation. It signals that Playlist is the "whole" and Song is the "part," but the songs are not owned by the playlist.

3. Code Example

Let’s model a real-world aggregation: The relationship between a university Department and its Professors.

A department "has" professors, but the professors are independent entities. If the department is restructured or closed, the professors (as university employees) still exist and can be assigned to other departments. The department does not own the lifecycle of the professors.

Pay attention to three things in this code:

Department groups Professor objects, but it does not create them. The professors are created externally and passed into the department's constructor.
The professors exist before the department is created and survive after the department is deleted. Their lifecycle is independent.
The same professor objects could be passed to another Department constructor. A professor can belong to multiple departments.

If you delete the csDept object, the professors still exist in memory and could be reassigned to another department. That's aggregation in action.

4. Why Aggregation Matters in OOP

Choosing aggregation in your design has significant benefits for software architecture:

Promotes Reusability: "Part" components (like a Developer or a Microservice) are independent and can be reused across multiple "whole" objects (Team or ApiGateway).
Improves Flexibility: The relationship is loose, which reduces coupling between classes. You can modify the Team class without affecting the Developer class, and vice versa.
Reflects Real-World Relationships: Many real-world systems (teams, projects, organizations) naturally exhibit aggregation, making your software model more intuitive and accurate.

Bad → Good → Great Example

Bad: A Team class has a method createNewDeveloper(), creating and destroying Developer objects internally. This creates tight coupling, making it behave like composition.
Good: A Team class holds a reference to Developer instances that are created elsewhere and passed to it. This is standard aggregation.
Great: A Team's dependencies (the list of Developers) are provided via its constructor or a setter method (Dependency Injection). This is the most flexible approach, promoting high modularity and making the Team class easy to test with mock Developer objects.

5. Practical Example: Music Library System

Let's build a system that demonstrates aggregation across multiple classes. A music library manages artists, songs, playlists, and users. The relationships between these entities show how parts (songs) can be shared across multiple wholes (playlists), and how deleting a whole leaves its parts intact.

Here's how the classes connect:

Artist is an independent entity that creates songs.
Song belongs to an Artist but exists independently of any playlist.
Playlist aggregates multiple Song objects. The same song can appear in different playlists.
User aggregates multiple Playlist objects. Deleting a user's playlist doesn't destroy the songs.
Library holds the master collection of all songs, independent of any playlist or user.

Notice the hollow diamonds on Playlist, User, and Library. All three aggregate their parts without owning their lifecycles. A song can exist in the library, in multiple playlists, and survive the deletion of any playlist or user.

Why This Design Works

Songs are shared across playlists. "Hello" appears in both "Workout Mix" and "Chill Vibes." Both playlists reference the same Song object. If Adele updates the song metadata, both playlists see the change automatically.
Deleting a playlist doesn't destroy songs. When "Workout Mix" is deleted, the library still has all 4 songs and "Chill Vibes" is unaffected. The playlist was just a container of references.
The library is the authoritative source. Songs exist in the Library independently of any playlist. Playlists are views over the library's data, not owners of it.
Users own playlists, but playlists don't own songs. This is aggregation at two levels: User aggregates Playlist, and Playlist aggregates Song. At each level, the parts survive the deletion of the whole.
