Imagine you’re running a busy online store with a massive customer database.

Each customer record contains dozens of columns—from basic information like name and email to rarely accessed details such as user preferences.

When your system has to retrieve data quickly for millions of users, it can struggle if every query has to sift through all this extra baggage. This is where vertical partitioning comes into play.

In this article, we’ll explore what vertical partitioning is, why it’s important, how it works, and when to use it.

1. What is Vertical Partitioning?

Vertical partitioning is a database design technique that involves splitting a large table into multiple smaller tables, each containing a subset of the original table’s columns.

Unlike horizontal partitioning, which divides data by rows (for example, splitting customers by region), vertical partitioning divides data by columns.

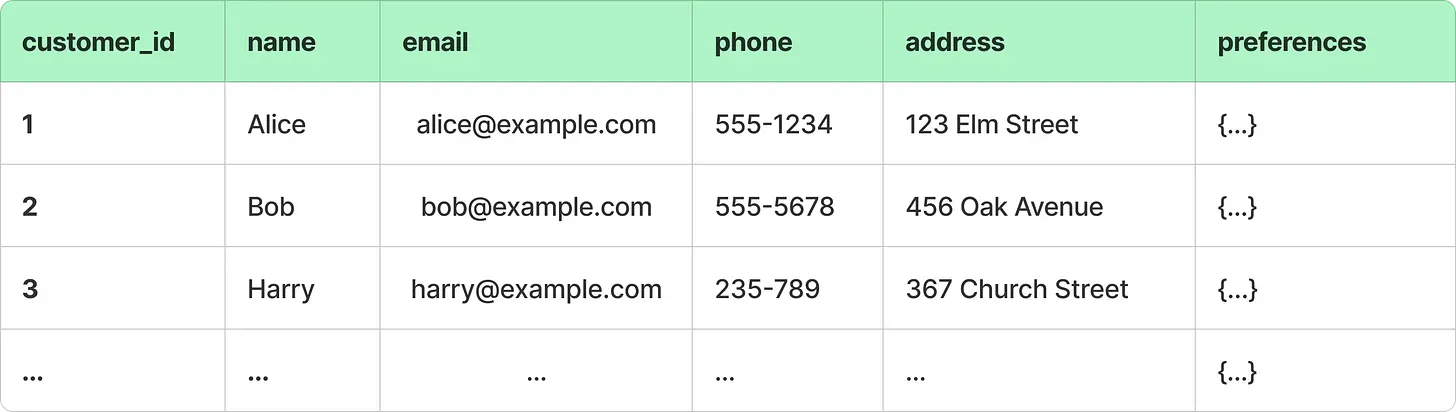

Consider a single Customer table:

If many queries only require customer_id, name, and email, but not the heavier columns like address and preferences, vertical partitioning can help optimize performance.

2. Why Consider Vertical Partitioning?

In large-scale systems, performance and efficiency are critical.

Vertical partitioning addresses several challenges:

• Faster Queries: Queries that access only a subset of columns have less data to scan, resulting in faster response times.
• Reduced I/O Overhead: By storing frequently accessed “hot” columns separately from rarely used “cold” columns, you reduce the amount of data the database needs to read from disk.
• Improved Cache Efficiency: Smaller, focused tables can be more effectively cached in memory, further speeding up read operations.
• Better Scalability: When tables become too wide (i.e., have too many columns), vertical partitioning makes them easier to manage and scale.
• Optimized Storage: Columns that are rarely updated can be stored on slower, cost-effective storage, while frequently updated columns reside on faster storage.
• Efficient Indexing: Indexes on a smaller set of columns are generally faster and require less storage.

3. When and How to Apply Vertical Partitioning

When to Consider Vertical Partitioning:

• Wide Tables: When a single table has too many columns, especially if not all columns are used in every query.
• Diverse Access Patterns: If different applications or modules need different subsets of the data.
• Performance Bottlenecks: When read performance is suffering due to the overhead of scanning irrelevant columns.

How to Apply Vertical Partitioning:

1. Identify Column Usage Patterns: Analyze your queries to determine which columns are accessed together frequently and which are rarely used.
2. Group Columns Logically: Divide your table into groups—typically one for frequently accessed (hot) data and one or more for infrequently accessed (cold) data.
3. Create Separate Tables: For example, split the Customer table into:
5. Ensure a Common Key: Each partitioned table should share a common primary key (e.g., customer_id) so that you can easily join them when needed.
6. Update Application Logic: Modify your queries to fetch data from the appropriate tables. Often, you can use views or ORM mappings to abstract these details.

4. Example

Before Partitioning

Imagine a wide table:

After Vertical Partitioning

Split the table into two:

Customer Basic Table

Customer Details Table

This separation allows your database engine to fetch only the necessary columns, reducing the load and improving performance.

5. Challenges and Trade-Offs

While vertical partitioning offers many benefits, it also comes with potential challenges:

• Increased Complexity in Queries: Joining partitioned tables may add complexity to your SQL queries and can introduce overhead if not optimized properly.
• Data Consistency: Keeping data synchronized across partitioned tables requires careful management, especially during updates and deletions.
• Application Changes: Existing applications may need to be refactored to accommodate the new schema, which could be a significant effort.
• Maintenance Overhead: More tables mean more objects to manage, backup, and monitor.

6. Best Practices

• Analyze Query Patterns: Use monitoring and query analysis tools to understand which columns are accessed together.
• Start Small: Consider partitioning only the most problematic tables first before applying the strategy across your entire database.
• Use Views: Create database views to abstract the partitioning details from your application logic, making it easier to maintain and query the data.
• Test Thoroughly: Before fully deploying vertical partitioning in production, test its impact on performance and data consistency in a staging environment.

7. Conclusion

Vertical partitioning is a powerful strategy in system design that helps manage wide tables and improve database performance by splitting data into more manageable pieces. By focusing on grouping columns based on access patterns, you can reduce query latency, optimize storage, and enhance the overall scalability of your system.

While it introduces some complexity—especially in terms of query design and data consistency—its benefits often outweigh the challenges, particularly in large-scale systems where performance is critical.
