In the previous chapter, we explored relational databases and their powerful guarantees around data integrity and transactions.

But that power comes with a cost: rigidity. Every row in a table must conform to the same schema. Every change to that schema requires a migration. And when your data is naturally hierarchical, you must flatten it into multiple tables and reassemble it with joins on every read.

Document databases emerged as a response to these constraints. Instead of storing data in rows and columns, they store it in documents, typically JSON or a binary equivalent like BSON.

Each document is a self-contained unit that can have a different structure from other documents in the same collection. There are no joins because related data is embedded directly within the document.

This flexibility fundamentally changes how applications are built.

The Document Model

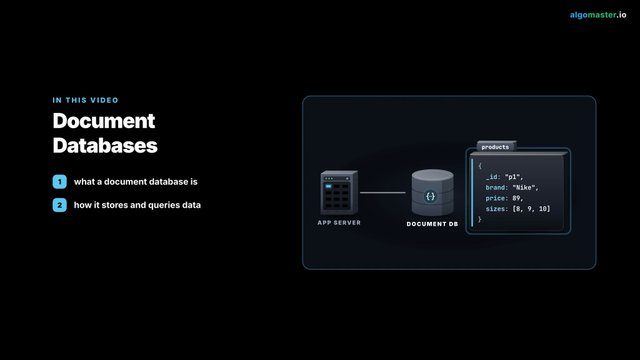

A document database stores data as documents. A document is a self-describing data structure, typically JSON, that can contain nested objects, arrays, and scalar values.

Unlike relational rows, which must all have the same columns, documents in the same collection can have completely different structures.

Document Structure

Here is a typical document representing a blog post:

Several things to notice about this document:

Nested objects. The author and stats fields contain objects with their own properties.
Arrays. The tags field is an array of strings. The comments field is an array of objects.
Self-contained. Everything about this post, including its comments, is in one document. No joins required.
Flexible structure. Another post could have additional fields like featured_image or series, or lack fields like comments.

Collections

Documents are grouped into collections, which are roughly analogous to tables in relational databases. However, there is a key difference: collections do not enforce a schema. You can store documents with completely different structures in the same collection.

Relational Concept	Document Concept
Database	Database
Table	Collection
Row	Document
Column	Field
Schema	Optional (schema validation available)

In practice, documents in a collection typically share a similar structure because they represent the same type of entity. But the flexibility to have variations is valuable during development and for handling edge cases.

Document IDs

Every document has a unique identifier. In MongoDB, this is the _id field, which is automatically generated if not provided. The default ID is an ObjectId, a 12-byte value that encodes:

4 bytes: Unix timestamp
5 bytes: Random value (unique per machine/process)
3 bytes: Incrementing counter

This structure means ObjectIds are roughly chronologically sorted, which can be useful for range queries on creation time. However, you can also use any unique value as the ID: UUIDs, natural keys like email addresses, or application-generated identifiers.

Embedding vs Referencing

The most important decision in document database design is choosing between embedding related data and referencing it. This is fundamentally different from relational databases, where you always normalize and join.

Embedding

Embedding stores related data directly within the document:

Advantages of embedding

Single read: All related data is retrieved in one database operation.
Atomic writes: Updates to the document are atomic, no transactions needed.
Data locality: Related data is stored together on disk, improving read performance.
Simpler queries: No joins or multiple queries to assemble the data.

Disadvantages of embedding

Data duplication: If Alice places 100 orders, her name and address are stored 100 times.
Update anomalies: If Alice changes her email, you must update it in every order.
Document size limits: MongoDB limits documents to 16 MB. Large embedded arrays can hit this limit.
Unbounded growth: Arrays that grow without limit (like comments) can cause performance issues.

Referencing

Referencing stores only the ID of related data:

To display this order, the application must make additional queries to fetch the customer and product details:

Advantages of referencing

No duplication: Each piece of data is stored once.
Easy updates: Changing a customer's email is a single update.
Smaller documents: References are just IDs, keeping documents compact.
Flexibility: The same customer can be referenced from many contexts.

Disadvantages of referencing

Multiple queries: Fetching related data requires additional database operations.
No joins: Unlike SQL, there is no single query that retrieves the order with customer and product details.
Consistency: If you delete a referenced document, you must handle the dangling reference.

When to Embed vs Reference

Factor	Favor Embedding	Favor Referencing
Access pattern	Always accessed together	Accessed independently
Relationship	One-to-one or one-to-few	One-to-many or many-to-many
Update frequency	Rarely updated	Frequently updated
Data size	Small, bounded	Large or unbounded
Consistency needs	Can tolerate duplication	Must be authoritative

Practical guidelines:

Embed data that is always needed with the parent document
Embed data that has a one-to-one or one-to-few relationship
Reference data that is large, frequently updated, or accessed independently
Reference data when the array could grow without bound

Query Capabilities

Document databases offer rich query capabilities, though they differ from SQL. Instead of declarative SQL, you typically use a query API or a query language specific to the database.

Basic Queries

In MongoDB, queries use a JSON-like syntax:

Projection

You can retrieve only specific fields:

Array Queries

Document databases excel at querying within arrays:

Aggregation Pipeline

For complex data transformations, MongoDB provides an aggregation pipeline:

The aggregation pipeline is surprisingly powerful, capable of joining collections (using $lookup), reshaping documents, performing statistical operations, and more.

Query Limitations

Despite rich query capabilities, document databases have limitations compared to SQL:

Operation	SQL	Document DB
Join tables	Native, efficient	$lookup (less efficient)
Subquery	Native	Limited or requires application logic
Cross-collection transactions	Native	Supported but with overhead
Aggregations	Native	Aggregation pipeline
Window functions	Native	Limited support

The fundamental limitation is that document databases are optimized for operations within a single document. Cross-document operations are possible but less efficient.

Indexing

Without indexes, every query would scan every document in a collection. Indexes make queries fast by creating sorted data structures that point to documents.

Index Types

Document databases support various index types:

Index Type	Use Case	Example
Single field	Queries on one field	Index on `email`
Compound	Queries on multiple fields	Index on `{status, created_at}`
Multikey	Queries into arrays	Index on `tags` field
Text	Full-text search	Search within `content` field
Geospatial	Location-based queries	Find nearby restaurants
Hashed	Sharding distribution	Shard key index

Creating Indexes

Index Considerations

Read vs write trade-off. Indexes speed up reads but slow down writes because every insert and update must also update the indexes.
Memory usage. Indexes should fit in RAM for best performance. Large indexes that spill to disk significantly degrade performance.
Compound index order. The order of fields in a compound index matters. Put equality conditions first, then sort fields, then range conditions.
Covered queries. If an index contains all fields needed by a query, the database can return results without reading the actual documents.

Schema Validation

While document databases are often called "schemaless," modern databases like MongoDB support optional schema validation. This gives you flexibility with guardrails.

Validation Setting	Behavior
`validationLevel: "strict"`	Validate all inserts and updates
`validationLevel: "moderate"`	Only validate inserts and updates to documents that already match
`validationAction: "error"`	Reject invalid documents
`validationAction: "warn"`	Allow invalid documents but log a warning

Schema validation provides a middle ground: flexibility for development and iteration, with constraints for production stability.

Transactions

Historically, document databases only provided atomicity at the document level. Multi-document operations were not atomic, which was a significant limitation for certain use cases.

Modern document databases now support multi-document transactions:

However, there are important caveats:

Aspect	Single-Document	Multi-Document Transaction
Atomicity	Guaranteed	Guaranteed
Performance	Optimal	Overhead (locks, coordination)
Complexity	Simple	More complex error handling
Best practice	Prefer this	Use when necessary

The recommendation is to design your data model so that operations affecting related data can be performed on a single document. Use multi-document transactions when the data model cannot accommodate this or when you are migrating from a relational database.

Scaling Document Databases

Document databases are designed for horizontal scaling from the ground up. Sharding distributes data across multiple servers.

Sharding Architecture

Components:

Shards: Each shard holds a subset of the data. Shards are typically replica sets for high availability.
Config servers: Store metadata about which chunks of data are on which shards.
Query routers (mongos): Route queries to the appropriate shard(s) based on the shard key.

Shard Key Selection

The shard key determines how data is distributed. This is the most important decision in sharding:

Shard Key Property	Good	Bad
Cardinality	High (many unique values)	Low (few values like status)
Frequency	Even distribution	Skewed (one value dominates)
Monotonicity	Random or hashed	Sequential (like timestamps)
Query pattern	Matches common queries	Doesn't match access patterns

Good shard key examples:

user_id for a multi-tenant application
Hashed _id for even distribution
Compound key {tenant_id, created_at} for time-series per tenant

Bad shard key examples:

status (low cardinality, uneven distribution)
created_at alone (monotonically increasing, all writes go to one shard)
Rarely-queried field (every query becomes a scatter-gather)

Targeted vs Scatter-Gather Queries

When the query includes the shard key, the router can send the query directly to the relevant shard (targeted query). When it does not, the router must query all shards and merge results (scatter-gather).

Targeted queries are efficient. Scatter-gather queries are expensive, especially as the cluster grows. Design your shard key and queries to maximize targeted operations.

Feature	MongoDB	DocumentDB	Firestore	CouchDB
Hosting	Self/Cloud	AWS only	GCP only	Self-hosted
Real-time	Change streams	-	Native	-
Offline sync	-	-	Native	Native
Transactions	Multi-doc	Multi-doc	Multi-doc	Single-doc
Aggregation	Powerful	Compatible	Limited	MapReduce

When to Choose Document Databases

Document databases are the right choice when:

Data is naturally hierarchical. Products with nested specifications, blog posts with embedded comments, user profiles with varied attributes.
Schema evolves frequently. During rapid development, the ability to add fields without migrations accelerates iteration.
Developer velocity matters. Storing data in the same shape as your application objects reduces impedance mismatch.
Read patterns favor denormalization. If you always need related data together, embedding it is more efficient than joining.
Horizontal scaling is required. Document databases are designed for sharding from day one.

When to Consider Alternatives

Document databases may not be the best fit when:

Strong ACID transactions are critical. While modern document databases support transactions, they add overhead. Relational databases are still superior for transaction-heavy workloads.
Complex relationships dominate. Many-to-many relationships and multi-hop traversals are awkward in document databases. Consider graph databases.
Data must be queried across collections. If you frequently need to join data from multiple collections, you are fighting the document model.
Strict data integrity is required. Schema enforcement in document databases is optional. Relational databases enforce it by default.

Summary

Document databases offer a fundamentally different approach to data storage compared to relational databases:

Aspect	Document DB Approach
Data model	JSON-like documents with nested objects and arrays
Schema	Flexible by default, optional validation available
Relationships	Embedding (denormalization) or referencing (application-level joins)
Transactions	Single-document atomic, multi-document with overhead
Scaling	Designed for horizontal scaling via sharding
Query language	Database-specific API or query language, not SQL

Key design decisions:

Embed data that is always accessed together, has bounded size, and updates infrequently
Reference data that is large, unbounded, or frequently updated independently
Index fields used in queries, especially the shard key
Shard key selection is critical: choose high cardinality, even distribution, and match query patterns

The next chapter explores key-value stores, which take simplicity to the extreme. Where document databases offer flexible structure, key-value stores offer almost no structure at all, trading it for raw speed and simplicity.
