Lets say your metrics dashboard shows that p99 latency spiked from 200ms to 2 seconds. You know something is wrong, but where? The request touches 8 services. Is it the database? The payment gateway? Network latency between services? A slow cache lookup?

Logs can tell you what happened in each service, but piecing together the timeline across 8 services is tedious. Metrics show aggregate latency but not which component is slow. Correlation IDs link logs together but do not show timing.

Distributed tracing solves this by recording the journey of each request through your system, including exactly how long each step took. It shows you a timeline of every service call, database query, and external API request. When latency spikes, you can look at slow traces and immediately see where the time went.

In this chapter, you will learn:

This chapter builds directly on correlation IDs. Distributed tracing is correlation IDs with structure, timing, and visualization.

What Is Distributed Tracing?

A distributed trace is a record of a request's journey through a system. It captures every service, database call, and external API request, along with timing information.

From this trace, you can immediately see:

Without tracing, finding this information would require correlating logs across 5 services and manually calculating timing differences.

Traces and Spans

Distributed tracing is built on two simple ideas: a trace tells the full story, and spans are the chapters. Once you understand these two concepts, trace visualizations stop looking mysterious and start feeling like a timeline you can reason about.

Traces

A trace represents the complete journey of a single request as it moves through your distributed system.

A trace typically includes:

A trace answers questions like:

Spans

A span is a single unit of work inside a trace. Every meaningful operation can create a span:

Spans form a tree. The first span is the root (often the API gateway or edge service). Downstream work becomes child spans, and deeper calls become grandchildren.

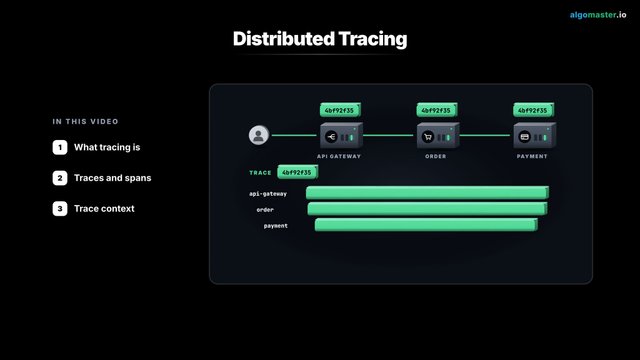

Here is an example trace:

This one tree tells you a lot:

Span Anatomy

Every span carries enough metadata to answer: what happened, where, and how long it took.

A useful way to think about attributes is: they make spans filterable. Without attributes, you can only look at one trace at a time. With attributes, you can ask questions like “show me traces where db.statement is slow” or “only traces with http.status_code=500.”

Context Propagation

Distributed tracing only works if trace context flows through every hop. It is the same idea as propagating a correlation ID, but more structured.

Instead of passing just one ID, you pass enough information to rebuild the full span tree across services.

W3C Trace Context

The most common standard for HTTP-based propagation is W3C Trace Context. It defines two headers:

traceparent format

What each piece means:

tracestate format

This is where vendors can store extra data (for example, internal routing, tenant information, or sampling details). Your application usually treats it as opaque and just forwards it.

Propagation Flow

Here is how a trace typically forms as a request moves through the system.

What every service must do

To keep traces connected, each service must follow the same loop:

If any service forgets step 3, downstream services will start new traces and your end-to-end view will be broken.

Instrumenting for Tracing

To get useful traces, you need instrumentation at the right places. There are two ways to add it: automatic instrumentation for common libraries, and manual instrumentation for your own business logic.

A good rule is to start with automatic instrumentation to get broad coverage, then add manual spans only where they add clarity.

Automatic Instrumentation

Automatic instrumentation uses libraries, agents, or SDKs that hook into common frameworks and clients. You get spans without writing much tracing code yourself.

How it works

What usually gets auto-instrumented

Why auto-instrumentation is useful

Where it falls short

Auto-instrumentation can tell you that a request was slow and which dependency was slow, but it may not explain which part of your business logic was responsible. That is where manual spans help.

Manual Instrumentation

Manual instrumentation is when you explicitly create spans around the parts of your code that matter to you. This is how you turn a trace from “a list of RPCs” into something that matches how your system actually works.

Example pseudocode

This pattern is worth copying:

What manual spans are best for

What to Instrument

If you try to instrument everything, you will create noisy traces and spend more time maintaining spans than using them. Prioritize the places that give the biggest debugging value.

Start with service boundaries and external calls. These give you 80% of the value. Add business operations as needed.

Sampling Strategies

Tracing every request sounds great until you see the bill. Traces are rich, detailed, and expensive to store. At high traffic, sampling is not optional. It is how you keep tracing useful without turning it into a cost and storage problem.

Why Sample?

Imagine a service doing 10,000 requests per second.

Sampling is about choosing the right balance: enough visibility to debug issues, but not so much data that the tracing system collapses under its own weight.

Sampling Strategies

1. Head-Based Sampling

Head-based sampling decides whether to sample at the start of the trace (at the first span).

Pros

Cons

Head-based sampling is a solid default when you want predictable cost and you are okay with occasionally missing edge cases.

2. Tail-Based Sampling

Tail-based sampling collects span data first, then decides what to keep at the end of the trace.

A typical policy keeps traces that are:

Pros

Cons

Tail-based sampling is ideal when debugging quality matters more than predictable cost, and you can support the extra infrastructure.

3. Priority-Based Sampling

Priority-based sampling is a practical middle ground. You sample different traffic at different rates.

This approach is easy to explain, easy to tune, and usually gives good results in production.

Sampling Trade-offs

A good default for most teams is: head-based sampling + always sample errors, and then evolve toward tail-based sampling as traffic grows and debugging needs increase.

Tracing Systems

Once you have sampled traces, you need a backend to collect, store, and visualize them.

Jaeger

Features:

Zipkin

Similar architecture to Jaeger, originally from Twitter:

Features:

Managed Services

Managed services reduce operational work but can become expensive at high volume, especially if you keep too many traces or retain them for too long.

OpenTelemetry

OpenTelemetry is becoming the standard way to instrument traces (and increasingly metrics and logs) without locking into a single vendor.

A typical setup looks like:

OpenTelemetry provides:

Analyzing Traces

Traces are most valuable when you are debugging a real incident or chasing a performance regression. Metrics tell you something is wrong. Traces tell you where the time went and which dependency is responsible.

Finding Slow Traces

The first step is to filter for outliers. Most tracing tools let you query by duration, service, operation name, status, and tags.

Example

A good habit is to narrow your search further:

This makes it easier to find traces that represent the problem, not normal background noise.

Identifying Bottlenecks

Once you open a slow trace, look for the span that dominates the timeline. Most UIs show it visually, but you can reason about it as a breakdown of total time.

Example trace breakdown

What this tells you:

This is why tracing is so effective. You stop guessing and start following the time.

Comparing fast vs slow traces

A single slow trace is useful. Comparing slow traces with normal ones is where the insight usually appears.

Example comparison

The slow query is scanning 50,000 rows instead of looking up by primary key.

Service Dependency Maps

Tracing systems can build a service dependency map by looking at who calls whom.

This helps you see:

Connecting Traces to Logs and Metrics

Each pillar is useful on its own, but the real power shows up when they are connected. You want to move smoothly from a high-level signal to the exact request and then to the root cause.

A good observability setup lets you follow one flow:

metrics → traces → logs

Metrics tell you something changed. Traces show where it changed. Logs explain why it changed.

Traces to Logs

The simplest and most effective connection is to include trace_id (and ideally span_id) in every log entry. Once you do that, every trace becomes a clickable thread that leads to the exact log lines generated by that request.

Now the workflow is straightforward:

This is especially important in microservices, where a single user action can generate logs in five different services.

Traces to Metrics

Metrics give you trends, but they do not tell you which request caused a spike. Exemplars bridge that gap by attaching a trace reference to a specific metric sample.

Think of an exemplar as “a representative trace for this data point.”

When you see a latency spike in metrics, the exemplar links to an example slow trace.

The debugging flow

Here is what “connected observability” looks like during an incident:

Without the connections, each step takes longer and involves guesswork. With the connections, you follow a trail of evidence.

Best Practices

1. Instrument at Service Boundaries First

Start where requests cross boundaries. That is where tracing delivers the most value early.

This gets you most of the end-to-end picture with minimal effort.

2. Add Meaningful Attributes

Attributes are what make traces searchable and explainable. The goal is to add enough context to filter and compare without turning spans into data dumps.

If an attribute is high-cardinality, sensitive, or huge, it probably belongs in logs (with masking) rather than in traces.

3. Use Semantic Conventions

Consistency is the difference between “searchable traces” and “random metadata.” OpenTelemetry provides standard attribute names so different teams and libraries speak the same language.

When everyone follows conventions, you can build shared dashboards and queries that work across all services.

4. Sample Appropriately

Sampling should match the environment and the cost profile.

A practical production policy:

5. Set Retention Based on Value

Traces are most valuable close to the time of an incident. Keep high-value traces longer and normal traces shorter.

Tune these based on how often you investigate historical incidents and how expensive storage is for your tracing backend.

Summary

Connecting the pillars turns observability from three separate tools into one coherent workflow:

If you build these connections early, debugging becomes a repeatable process instead of an art form.
